Schneider Lineer Araba Modelleri ve Teknik Özellikleri

GEWISS Linear Araba Ve Kızak

SCHNEIDER DAR ARABA

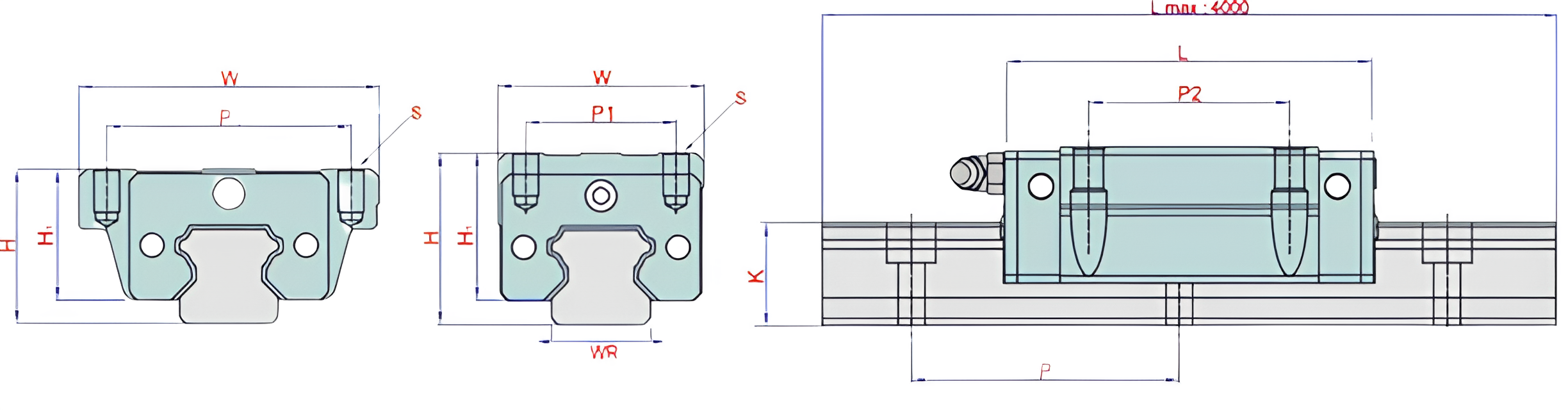

Model	W	H	L	P1	P2	P	K	WR	S	Dinamik Yük (N)	Statik Yük (N)
GHS 15 S LİNEER ARABA	34	28	60.5	26	26	60	15	15	M4	11380	16970
GHS 20 S LİNEER ARABA	44	30	75.7	32	36	60	20	20	M5	17750	27760
GHS 25 S LİNEER ARABA	48	36	84	35	35	60	25	23	M6	25480	36490
GHS 30 S LİNEER ARABA	60	45	98.4	40	40	80	30	28	M8	38740	52000
GHS 35 S LİNEER ARABA	70	55	112.4	50	50	80	35	34	M8	49520	69000
GHS 45 S LİNEER ARABA	86	70	137.4	60	60	105	45	45	M10	77570	102710

SCHNEIDER DAR UZUN ARABA
Model	W	H	L	P1	P2	P	K	WR	S	Dinamik Yük (N)	Statik Yük (N)
GHS 20 SL LİNEER ARABA	44	30	91.4	32	36	60	20	20	M5	21180	35900
GHS 25 SL LİNEER ARABA	48	40	104.6	35	35	60	25	23	M6	32750	49440
GHS 30 SL LİNEER ARABA	60	45	121.4	40	40	80	30	28	M8	47270	69160
GHS 35 SL LİNEER ARABA	70	55	138.2	50	50	80	35	34	M8	60210	91630
GHS 45 SL LİNEER ARABA	86	70	169.2	60	60	105	45	45	M10	94540	136460

SCHNEIDER GENİŞ ARABA
Model	W	H	L	P1	P2	P	K	WR	S	Dinamik Yük (N)	Statik Yük (N)
GHS 15 B LİNEER ARABA	47	24	60.5	38	30	60	15	15	M5	11380	16970
GHS 20 B LİNEER ARABA	63	30	75.7	53	40	60	17.5	20	M6	17750	27760
GHS 25 B LİNEER ARABA	70	36	84	57	45	60	22	23	M8	26480	36490
GHS 30 B LİNEER ARABA	90	42	98.4	72	52	80	26	28	M10	38740	52000
GHS 35 B LİNEER ARABA	100	48	112.4	82	62	80	29	34	M10	49520	69000
GHS 45 B LİNEER ARABA	120	60	137.4	100	80	105	38	45	M12	77570	102710

SCHNEIDER GENİŞ ARABA
Model	W	H	L	P1	P2	P	K	WR	S	Dinamik Yük (N)	Statik Yük (N)
GHS 20 BL LİNEER ARABA	63	30	91.4	53	40	60	17.5	20	M6	21180	35900
GHS 25 BL LİNEER ARABA	70	36	104.6	57	45	60	22	23	M8	32750	49440
GHS 30 BL LİNEER ARABA	90	42	121.4	72	52	80	26	28	M10	47270	69160
GHS 35 BL LİNEER ARABA	100	48	138.2	82	62	80	29	34	M10	60210	91630
GHS 45 BL LİNEER ARABA	120	60	169.2	100	80	105	38	45	M12	94540	136460
